RuleGo-Server (opens new window) is an application development platform built on the RuleGo (opens new window) rule engine core, providing out-of-the-box RESTful API, visual editor, multi-tenant management, and AI Agent capabilities.

Positioning and Role

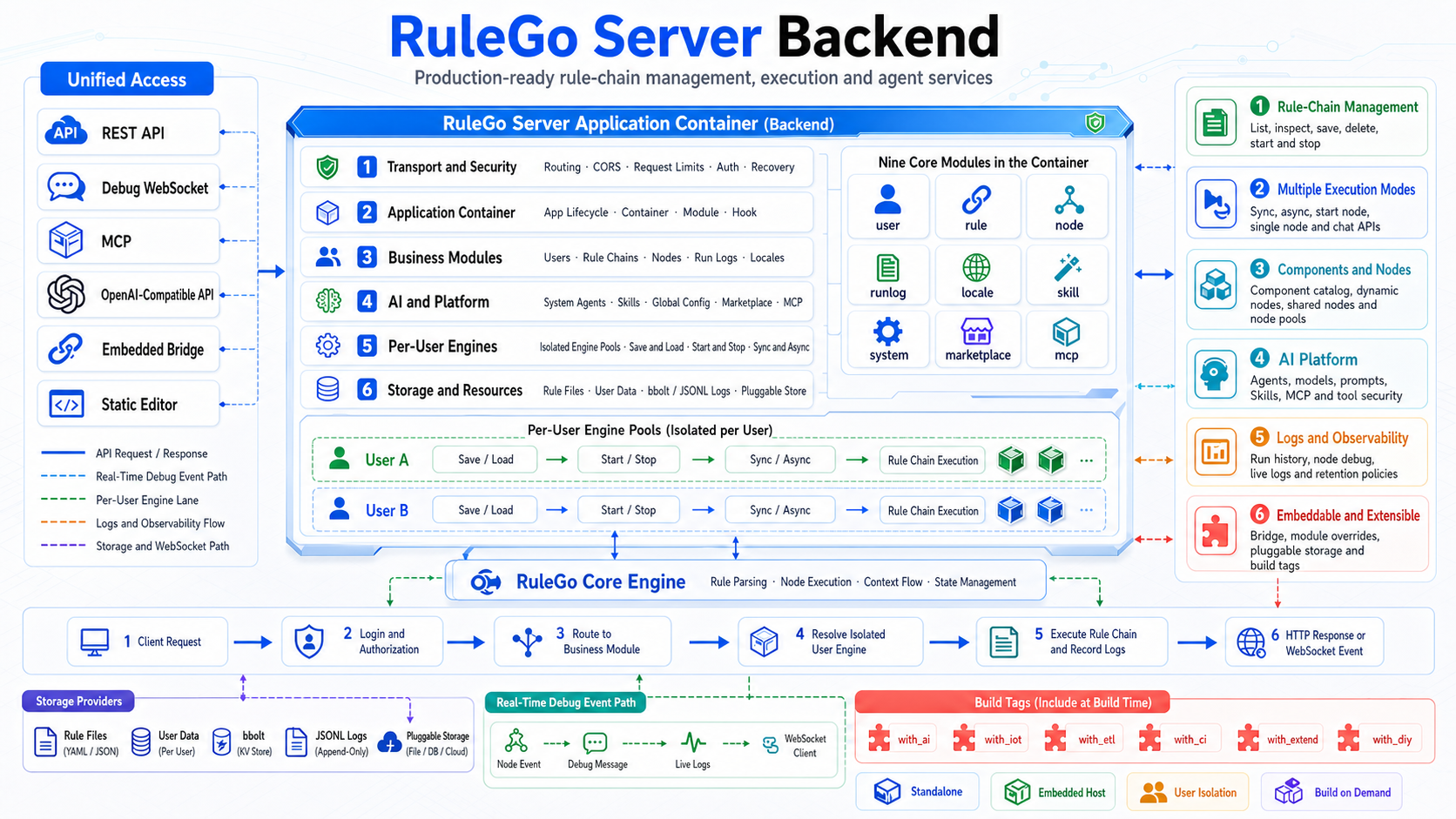

The RuleGo core library is a Go rule engine responsible for parsing, loading, and executing rule chains. RuleGo-Server wraps a complete application-layer capability on top of it:

Layer	Component	Responsibility
Core Engine	RuleGo	Rule chain DSL parsing, node execution, component registration
Application Platform	RuleGo-Server	REST API, user authentication, multi-tenant, persistence, MCP service, visual editor

Typical Use Cases:

• Run as a standalone server, manage and execute rule chains via API
• Embed into existing Go web frameworks (Gin/Echo) to provide rule engine capabilities
• Serve as an AI Agent platform, allowing AI tools to manage rule chains via the MCP protocol
• Build IoT gateways, data processing pipelines, API orchestration, ETL workflows, and more

Features

• Lightweight: Small memory footprint, high performance, easy deployment, out-of-the-box, no database required
• Rich Components: 100+ built-in components covering AI, CI/CD, ETL, IoT, databases, message queues, and more
• Visual Editing: Built-in RuleGo-Editor with drag-and-drop rule chain editing and debugging
• Zero-Code Deployment: Load rule chain DSL files directly and run without writing any code
• Component-Based: Compile on demand, load on demand, support dynamic installation from the component marketplace
• Hot Reload: Rule chains support hot reload; changes take effect immediately
• Multi-Tenant: Each user has an independent workspace, rule engine pool, and component configuration
• AI Native: Built-in AI Agent, supports LLM components, MCP protocol, and Skill management
• Embeddable: Embed into Go web frameworks like Gin/Echo via Bridge mode

Quick Start

1. Download

Download the binary file for your platform from Github Releases (opens new window).

Other versions can be compiled from the repository: Source Code (opens new window)

2. Start

./server -c="./config.conf"

Start in background:

nohup ./server -c="./config.conf" >> console.log &

After successful startup, the console outputs:

RuleGo-Server now running at http://127.0.0.1:9090
started rest server on :9090

3. Access the Editor

Open http://localhost:9090/editor/ (opens new window) in your browser to use the visual editor.

Documentation Navigation

Topic	Description
Installation and Deployment	Configuration file details, Docker deployment, build tags
Authentication and Authorization	JWT, API Key, permission system
REST API Reference	Rule chain management, execution debugging, component management, full API
MCP Service	MCP configuration, tool list, group control, custom MCP endpoints
AI Features	AI Agent, Skill, MCP integration with AI programming tools
Component Marketplace	Browse and install components/rule chain templates
Run Logs	Log storage, querying, cleanup
Internationalization	Language pack management
Custom Development	Module system, DI, custom storage, embedded mode
Deploying and Invoking Rule Chains	File-based and API deployment for third-party integration

Visual Editor

Topic	Description
Visual Editor	Editor features, canvas operations
AI Assistant Tutorial	Create/modify rule chains via AI conversation
Debugging Rule Chains	Debug console, single-node debugging, execution history
Creating an Agent Tutorial	Visually create agents and call them via API
